Why Are Electrodes Made of Graphite? The Rongsheng Graphite Electrode Supplier. If you’ve ever walked through an electric arc furnace melt shop, you’ve seen them: thick, silver-gray columns carrying thousands of amps of electricity into a roaring bath of molten steel. But have you ever stopped to ask: why are electrodes made of graphite? Why not copper, steel, or tungsten?

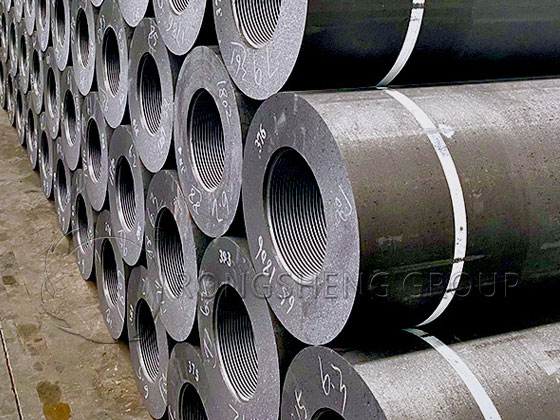

The answer lies in a unique set of properties that no other material possesses. At Rongsheng Graphite Electrodes Manufacturer, we don’t just produce these essential tools—we’ve built our entire production philosophy around maximizing graphite’s natural advantages. This article explains the science behind graphite electrodes, introduces you to reliable rp graphite electrode suppliers, and explores the specialized category of mc graphite electrode products.
The Fundamental Question: Why Are Electrodes Made of Graphite?
Let’s start with the core question: why are electrodes made of graphite instead of alternative conductive materials?
Copper – Excellent conductivity, but melts at 1085°C. Arc furnace temperatures exceed 3000°C at the electrode tip. Copper would vaporize instantly.
Steel – Strong and cheap, but oxidizes rapidly at high temperatures. A steel electrode would burn away in minutes.
Tungsten – High melting point (3422°C), but extremely brittle and difficult to machine into threaded connections. Also, it’s 20 times denser than graphite, making column handling impossible.
Graphite wins because it delivers four critical advantages simultaneously:
-
- Sublimation above 3600°C – It doesn’t melt; it transitions directly from solid to gas at temperatures far beyond furnace operating ranges.
- Low thermal expansion (CTE as low as 1.5 × 10⁻⁶/K) – When you plunge a room-temperature electrode into a 2500°C arc, graphite expands minimally. Copper would expand by 2% and seize in the holder.
- High electrical conductivity – UHP grade graphite achieves resistivity below 6.0 µΩ·m, comparable to some metal alloys.
- Machinability – Graphite can be precisely threaded to create gas-tight column joints. Try threading tungsten or ceramics at scale.
So why are electrodes made of graphite? Because no other material can handle the combination of extreme heat, thermal shock, electrical demand, and mechanical stress that defines electric arc furnace operation. Graphite isn’t just a good choice—it’s the only choice.

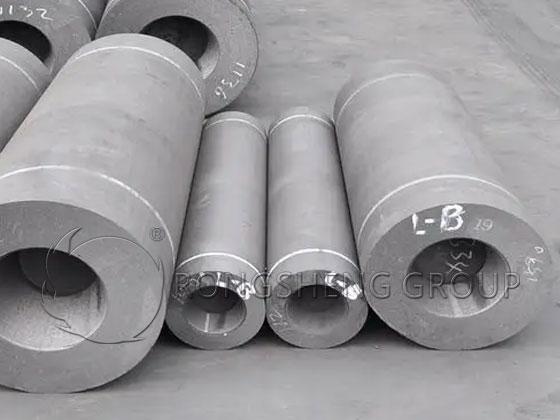

RP Graphite Electrode Suppliers: What RP Means and When to Use It
Not every furnace needs ultra-high power graphite. That’s where RP (Regular Power) grade comes in. As one of the established rp graphite electrode suppliers, Rongsheng produces RP grade for specific applications where cost optimization matters more than maximum power density.
What is RP Graphite?
-
- Resistivity: 8.0–9.0 µΩ·m (higher than HP or UHP)
- Flexural strength: 7.0–8.5 MPa (lower than premium grades)
- Current density rating: Typically 15–20 A/cm²
- Application: Small EAFs (<40 tons), submerged arc furnaces for ferroalloys, silicon metal production, and some ladle furnaces
When should you choose RP over HP or UHP?
-
- Your furnace transformer is rated below 15 MVA.
- You’re melting low-demand materials (pig iron, certain ferroalloys).
- Your tap-to-tap time targets are above 90 minutes (less thermal cycling stress).
- You need the lowest possible upfront electrode cost.
The challenge with finding reliable rp graphite electrode suppliers is quality consistency. Many suppliers offer RP grade made from low-grade calcined petroleum coke with poor crystallinity. These electrodes show:
-
- High breakage rates during thermal cycling
- Variable resistivity from batch to batch
- Excessive sidewall oxidation
Rongsheng’s RP grade uses a controlled formulation of needle coke and regular calcined coke, single impregnation, and standard graphitization cycles. The result is an RP electrode that outperforms generic alternatives while remaining cost-competitive.
MC Graphite Electrode: Understanding This Niche Category
The term mc graphite electrode appears less frequently than RP, HP, or UHP, but it represents an important subcategory. “MC” typically stands for “Medium Current” or “Metal-Carbon” depending on regional specifications. In practical terms, mc graphite electrode refers to electrodes designed for medium-power applications that fall between RP and HP grades.
Typical specifications for MC graphite electrode:
-
- Resistivity: 7.0–8.0 µΩ·m
- Flexural strength: 8.5–9.5 MPa
- Bulk density: 1.65–1.70 g/cm³
- Application: Medium-sized submerged arc furnaces, certain ladle metallurgy stations, and EAFs with transformer ratings of 12–20 MVA
Why MC matters: Some furnace operators don’t need full HP performance but find RP grade inadequate. MC fills this gap. It offers better thermal shock resistance than RP without the cost of double impregnation required for HP.
Rongsheng produces mc graphite electrode using a single impregnation cycle with higher-quality needle coke than our RP line. This yields resistivity approximately 15% lower than RP at only 8–10% higher cost. For the right furnace, MC delivers the best cost-per-performance ratio.
How to Evaluate RP Graphite Electrode Suppliers
When you’re sourcing from rp graphite electrode suppliers, don’t just compare price per metric ton. Request these five data points:
-
- Batch test records – Ask for resistivity and flexural strength measurements from the last five production batches. Consistent numbers indicate process control.
- Ash content analysis – Below 0.5% is standard. Below 0.3% indicates premium raw materials.
- CTE values – For RP grade, look for CTE ≤ 2.8 × 10⁻⁶/K. Higher values mean cracking risk.
- Thread inspection reports – Taper tolerance should be ±0.2mm over 300mm. Poor threading causes column separation.
- Anti-oxidation coating specifications – If coated, request oxidation weight loss data at 600°C for 4 hours.
Rongsheng, as one of the transparent rp graphite electrode suppliers, provides all five upon request. Many competitors won’t.
Why Rongsheng for Your RP and MC Graphite Electrodes?
We’ve covered why are electrodes made of graphite, identified what makes reliable rp graphite electrode suppliers, and defined the mc graphite electrode category. Now, why choose Rongsheng?
-
- Full process control – From needle coke procurement to final machining. No external variables.
- Three grade lines – RP, MC, HP, and UHP available from stock or custom production.
- ISO 9001:2015 certified – Every electrode traceable to its raw material lot.
- Technical support – Our engineers calculate optimal current loading for your specific furnace.

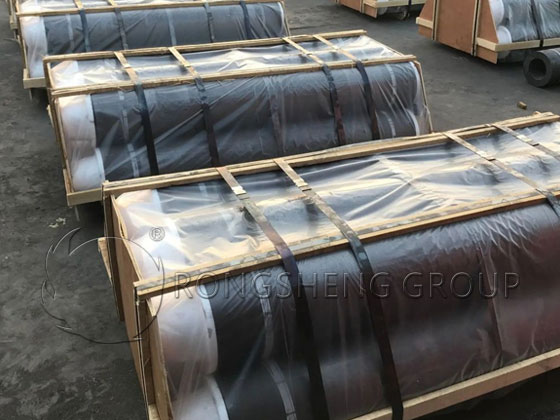

- Global shipping – Packaged in wooden crates with steel strapping. Sea-worthy containers.
Common Misconceptions About Graphite Electrodes
Misconception 1: “All graphite electrodes are essentially the same.”
False. Resistivity varies by nearly 100% between RP and UHP grades. That’s not a minor difference—it’s the difference between stable arcs and flickering power.
Misconception 2: “Why are electrodes made of graphite? Because it’s cheap.”
Partly true, but incomplete. Graphite isn’t cheap to produce (the graphitization process alone consumes significant energy). It’s used because no other material works. Cost is secondary to functionality.
Misconception 3: “MC graphite electrode is just marketing terminology.”
Not when properly defined. MC fills a real gap between RP and HP performance. The key is finding suppliers who publish actual specifications, not just labels.
Quality Manufacturing RP/HP/UHP Graphite Electrodes
Understanding why are electrodes made of graphite helps you appreciate the engineering behind every ton of steel. But knowledge alone doesn’t reduce your electrode consumption. That requires quality manufacturing from proven rp graphite electrode suppliers and the right grade selection—whether RP, MC, or higher.
Stop settling for inconsistent electrode performance. Contact Rongsheng today for RP or MC graphite electrode samples, complete specifications, and a consumption reduction proposal tailored to your furnace.
